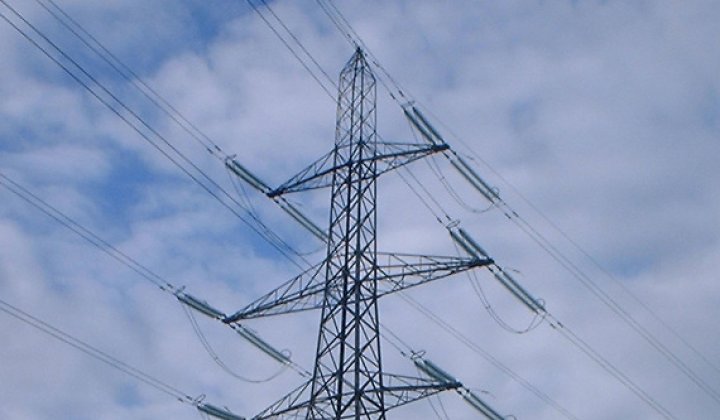

Angle steel towers refer to tower & mast structure ‘s direction often changed in power transmission line project. From 0~10°, 10-30°, 30-60°, 60-90°, even large angle direction. It can be classified as four-leg angle bar steel tower, triangular angle bar steel tower, guyed angle bar towers. All these can be used in power transmission line project and telecom industry. Angle bar steel towers are either 3 or 4 Legged angular self-supporting towers. Angle steel towers are generally constructed with various angle sizes for heights ranging from 15 m to 200 m.
Transmission Tower structures can be classified by the way in which they support the line conductors. Suspension structures support the conductor vertically using suspension insulators. Strain structures resist net tension in the conductors and the conductors attach to the structure through strain insulators. Dead-end structures support the full weight of the conductor and also all the tension in it, and also use strain insulators.
MEGATRO fabricates every type of angle steel towers by angle iron cross members. Structures can reach heights up to 200 meter. MEGATRO is one of the few manufactures who assemble a face of every tower section. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies.
After fabrication all angle bar steel towers are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers.
MEGATRO angle steel towers systems can accommodate a variety of cross-arm, ladder, platform or other accessories as per clients requirements. MEGATRO also offers a wide variety of accessories and mounts.
Availability size: Based on the customer's requirements.
Material: Chinese material or as per clients requirement
Package: Both parties discuss before delivery
Terms of Payment: L/C, T/T
Minimum Order Quantity: 5tons or one set
Port of Loading: Qingdao Port
Lead Time: One month or based on the customer's needs
Performance Standard
Besides conform to the drawing and design, the materials and fabrication of tower components shall conform to the Chinese Standard or other standard which clients can accept.
